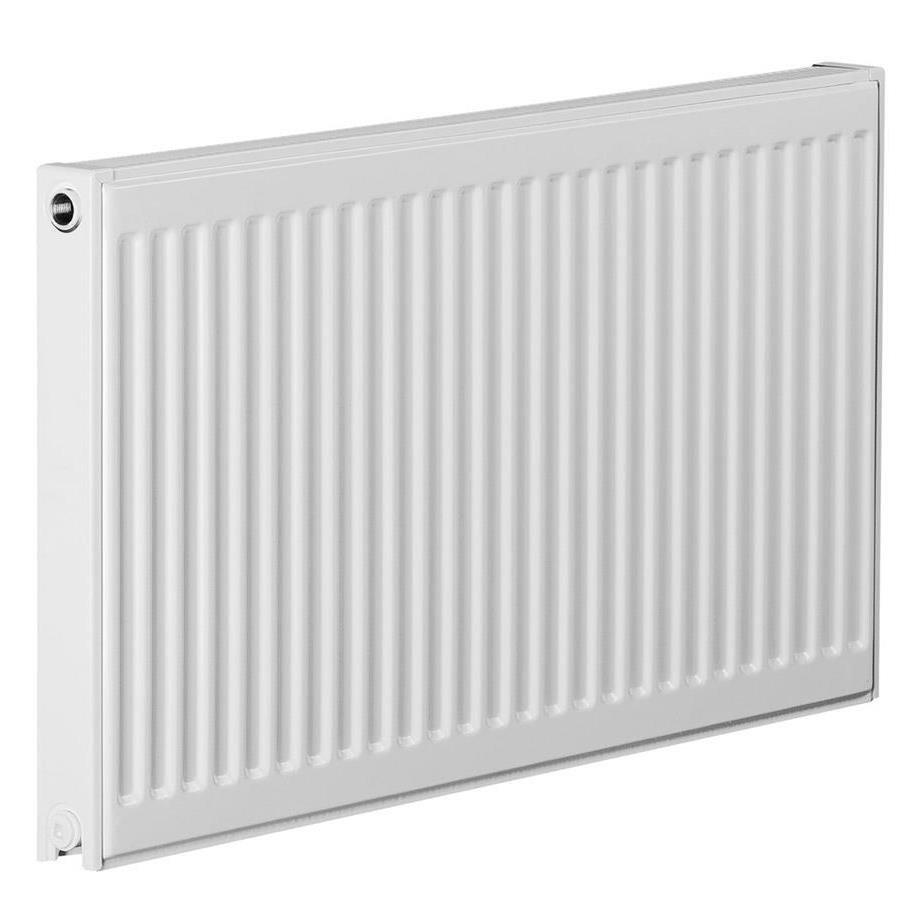

Prorad Type 11 Single Panel Compact Radiator 300mm high

(1 customer review)

£16.21 – £93.68

SKU: Prorad_T11_300h Categories: , ,

Description

Prorad radiators offer an up to date compact design coupled with a high quality build and finish from a leading radiator manufacturer.  Fitted with grilles and panels, the slim radiator design will suit any room.

Manufactured to EN442 specifications, the radiators are tested to a maximum working pressure of 10 bar (regular central heating systems run at 1.5 bar), so they’re suitable for both domestic and commercial central heating systems.  They come with a 10 year guarantee for maximum peace of mind.

Applications

Prorad radiators are suitable for two pipe installations.  For single pipe applications it’s advisable to use diversion tees in the pipework as this will assist in obtaining design performance from the radiator.  Whilst these radiators are suitable for micro bore pipework, the back tappings make it unsuitable for twin entry valves.

Installation

Everything required for installation can be found within the robust packaging.  Brackets are of a strong design, with open top and deep slots, which facilitate easy and secure installation.  Plastic inserts seat the radiator precisely on the bracket minimising expansion and contraction noise.  The neat nickel-plated plug and vent provide a watertight joint, whilst complimenting the superior finish.  Recommended height from the floor to the base of the radiator is 150mm minimum.  This allows adequate airflow when the radiator is placed on the bracket.

Paint Process

Each Prorad radiator is subjected to a multi stage cleaning process before the paint is applied.  This involves several rinsing stages, including an iron phosphate and demineralisation rinse.  The first coat of paint is an environmentally friendly water based primer paint.  The radiator is then stoved and cooled with a second powder coat in Warm White (RAL 9010) then applied followed by a final curing stage.

Alternative sizes

We stock a full range of Prorad radiators.

Radiator Valves

Valves are not included but we stock a wide range online.

Heat Outputs

Part Number Type Height Width Heat Output BTU Heat Output Watts
TYPE 11 SINGLE PANEL
411304 Type 11 Single Panel 300mm 400mm 703 206
411308 Type 11 Single Panel 300mm 800mm 1406 412
411314 Type 11 Single Panel 300mm 1400mm 2460 721
411318 Type 11 Single Panel 300mm 1800mm 3163 927
411320 Type 11 Single Panel 300mm 2000mm 3514 1030
411405 Type 11 Single Panel 400mm 500mm 1155 339
411406 Type 11 Single Panel 400mm 600mm 1386 406
411408 Type 11 Single Panel 400mm 800mm 1848 542
411410 Type 11 Single Panel 400mm 1000mm 2310 677
411412 Type 11 Single Panel 400mm 1200mm 2772 812
411414 Type 11 Single Panel 400mm 1400mm 3234 948
411416 Type 11 Single Panel 400mm 1600mm 3696 1083
411418 Type 11 Single Panel 400mm 1800mm 4158 1219
411420 Type 11 Single Panel 400mm 2000mm 4620 1354
411504 Type 11 Single Panel 500mm 400mm 1130 331
411505 Type 11 Single Panel 500mm 500mm 1413 414
411506 Type 11 Single Panel 500mm 600mm 1413 414
411507 Type 11 Single Panel 500mm 700mm 1978 580
411508 Type 11 Single Panel 500mm 800mm 2260 662
411509 Type 11 Single Panel 500mm 900mm 2543 745
411510 Type 11 Single Panel 500mm 1000mm 2825 828
411512 Type 11 Single Panel 500mm 1200mm 3390 994
411513 Type 11 Single Panel 500mm 1300mm 3673 1076
411514 Type 11 Single Panel 500mm 1400mm 3955 1159
411516 Type 11 Single Panel 500mm 1600mm 4520 1325
411518 Type 11 Single Panel 500mm 1800mm 5085 1490
411520 Type 11 Single Panel 500mm 2000mm 5650 1656
411604 Type 11 Single Panel 600mm 400mm 1321 387
411605 Type 11 Single Panel 600mm 500mm 1651 484
411606 Type 11 Single Panel 600mm 600mm 1982 581
411607 Type 11 Single Panel 600mm 700mm 2312 678
411608 Type 11 Single Panel 600mm 800mm 2642 774
411609 Type 11 Single Panel 600mm 900mm 2973 871
411610 Type 11 Single Panel 600mm 1000mm 3303 968
411611 Type 11 Single Panel 600mm 1100mm 3633 1065
411612 Type 11 Single Panel 600mm 1200mm 3963 1162
411613 Type 11 Single Panel 600mm 1300mm 4294 1258
411614 Type 11 Single Panel 600mm 1400mm 4624 1355
411616 Type 11 Single Panel 600mm 1600mm 5285 1549
411618 Type 11 Single Panel 600mm 1800mm 1742 1742
411620 Type 11 Single Panel 600mm 2000mm 6606 1936
411704 Type 11 Single Panel 700mm 400mm 1496 438
411705 Type 11 Single Panel 700mm 500mm 1870 548
411706 Type 11 Single Panel 700mm 600mm 2244 658
411707 Type 11 Single Panel 700mm 700mm 2618 767
411708 Type 11 Single Panel 700mm 800mm 2992 877
411709 Type 11 Single Panel 700mm 900mm 3366 986
411710 Type 11 Single Panel 700mm 1000mm 3740 1096
411712 Type 11 Single Panel 700mm 1200mm 4487 1315
411714 Type 11 Single Panel 700mm 1400mm 5235 1534
411716 Type 11 Single Panel 700mm 1600mm 5983 1754
411718 Type 11 Single Panel 700mm 1800mm 6731 1973
TYPE 21 DOUBLE PANEL
421320 Type 21 Double Panel 300mm 2000mm 5227 1532
421405 Type 21 Double Panel 400mm 500mm 1667 489
421406 Type 21 Double Panel 400mm 600mm 2000 586
421408 Type 21 Double Panel 400mm 800mm 2667 782
421410 Type 21 Double Panel 400mm 1000mm 3334 977
421412 Type 21 Double Panel 400mm 1200mm 4000 1172
421414 Type 21 Double Panel 400mm 1400mm 4667 1368
421416 Type 21 Double Panel 400mm 1600mm 5334 1563
421418 Type 21 Double Panel 400mm 1800mm 6000 1759
421420 Type 21 Double Panel 400mm 2000mm 6667 1954
421504 Type 21 Double Panel 500mm 400mm 1604 470
421505 Type 21 Double Panel 500mm 500mm 2005 588
421506 Type 21 Double Panel 500mm 600mm 2405 705
421507 Type 21 Double Panel 500mm 700mm 2806 823
421508 Type 21 Double Panel 500mm 800mm 3207 940
421509 Type 21 Double Panel 500mm 900mm 3608 1058
421510 Type 21 Double Panel 500mm 1000mm 4009 1175
421512 Type 21 Double Panel 500mm 1200mm 4811 1410
421514 Type 21 Double Panel 500mm 1400mm 5613 1645
421516 Type 21 Double Panel 500mm 1600mm 6415 1880
421604 Type 21 Double Panel 600mm 400mm 1859 545
421605 Type 21 Double Panel 600mm 500mm 2324 681
421606 Type 21 Double Panel 600mm 600mm 2788 817
421607 Type 21 Double Panel 600mm 700mm 3253 953
421608 Type 21 Double Panel 600mm 800mm 3718 1090
421609 Type 21 Double Panel 600mm 900mm 4182 1226
421610 Type 21 Double Panel 600mm 1000mm 4647 1362
421611 Type 21 Double Panel 600mm 1100mm 5112 1498
421612 Type 21 Double Panel 600mm 1200mm 5577 1634
421614 Type 21 Double Panel 600mm 1400mm 6506 1907
421616 Type 21 Double Panel 600mm 1600mm 7435 2179
421618 Type 21 Double Panel 600mm 1800mm 8365 2452
421620 Type 21 Double Panel 600mm 2000mm 9294 2724
421704 Type 21 Double Panel 700mm 400mm 2100 616
421705 Type 21 Double Panel 700mm 500mm 2626 770
421706 Type 21 Double Panel 700mm 600mm 3151 923
421707 Type 21 Double Panel 700mm 700mm 3676 1077
421708 Type 21 Double Panel 700mm 800mm 4201 1231
421709 Type 21 Double Panel 700mm 900mm 4726 1385
421710 Type 21 Double Panel 700mm 1000mm 5251 1539
421712 Type 21 Double Panel 700mm 1200mm 6301 1847
421714 Type 21 Double Panel 700mm 1400mm 7351 2155
421716 Type 21 Double Panel 700mm 1600mm 8402 2462
TYPE 22 DOUBLE PANEL
422304 Type 22 Double Panel 300mm 400mm 1342 393
422308 Type 22 Double Panel 300mm 800mm 2683 786
422314 Type 22 Double Panel 300mm 1400mm 4696 1376
422318 Type 22 Double Panel 300mm 1800mm 6037 1769
422320 Type 22 Double Panel 300mm 2000mm 6708 1966
422405 Type 22 Double Panel 400mm 500mm 2148 630
422406 Type 22 Double Panel 400mm 600mm 2577 755
422408 Type 22 Double Panel 400mm 800mm 3437 1007
422410 Type 22 Double Panel 400mm 1000mm 4296 1259
422412 Type 22 Double Panel 400mm 1200mm 5155 1511
422414 Type 22 Double Panel 400mm 1400mm 6014 1763
422416 Type 22 Double Panel 400mm 1600mm 6873 2014
422418 Type 22 Double Panel 400mm 1800mm 7732 2266
422420 Type 22 Double Panel 400mm 2000mm 8591 2518
422504 Type 22 Double Panel 500mm 400mm 2065 605
422505 Type 22 Double Panel 500mm 500mm 2581 757
422506 Type 22 Double Panel 500mm 600mm 3097 908
422507 Type 22 Double Panel 500mm 700mm 3613 1059
422508 Type 22 Double Panel 500mm 800mm 4130 1210
422509 Type 22 Double Panel 500mm 900mm 4646 1362
422510 Type 22 Double Panel 500mm 1000mm 5162 1513
422511 Type 22 Double Panel 500mm 1100mm 5679 1664
422512 Type 22 Double Panel 500mm 1200mm 6195 1816
422513 Type 22 Double Panel 500mm 1300mm 6711 1967
422514 Type 22 Double Panel 500mm 1400mm 7227 2118
422516 Type 22 Double Panel 500mm 1600mm 8260 2421
422518 Type 22 Double Panel 500mm 1800mm 9292 2723
422520 Type 22 Double Panel 500mm 2000mm 10325 3026
422604 Type 22 Double Panel 600mm 400mm 2384 699
422605 Type 22 Double Panel 600mm 500mm 2980 874
422606 Type 22 Double Panel 600mm 600mm 3576 1048
422607 Type 22 Double Panel 600mm 700mm 4173 1223
422608 Type 22 Double Panel 600mm 800mm 4769 1398
422609 Type 22 Double Panel 600mm 900mm 5365 1572
422610 Type 22 Double Panel 600mm 1000mm 5961 1747
422611 Type 22 Double Panel 600mm 1100mm 6557 1922
422612 Type 22 Double Panel 600mm 1200mm 7153 2096
422613 Type 22 Double Panel 600mm 1300mm 7749 2271
422614 Type 22 Double Panel 600mm 1400mm 8345 2446
422616 Type 22 Double Panel 600mm 1600mm 9537 2795
422618 Type 22 Double Panel 600mm 1800mm 10729 3145
422620 Type 22 Double Panel 600mm 2000mm 11922 3494
422704 Type 22 Double Panel 700mm 400mm 2679 785
422705 Type 22 Double Panel 700mm 500mm 3349 982
422706 Type 22 Double Panel 700mm 600mm 4019 1178
422707 Type 22 Double Panel 700mm 700mm 4688 1374
422708 Type 22 Double Panel 700mm 800mm 5358 1570
422709 Type 22 Double Panel 700mm 900mm 6028 1767
422710 Type 22 Double Panel 700mm 1000mm 6698 1963
422712 Type 22 Double Panel 700mm 1200mm 8037 2356
422714 Type 22 Double Panel 700mm 1400mm 9377 2748
422716 Type 22 Double Panel 700mm 1600mm 10716 3141
422718 Type 22 Double Panel 700mm 1800mm 12056 3533


Prorad Wall Mounting Instructions

Cassellie 10 Year Guarantee logo

Additional information

Weight N/A
Type

Compact Radiator
Main Colour

White
Brand

Prorad
Material

steel
MPN

Does Not Apply
Country/Region of Manufacture

Turkey
Radiator Type

Convector Panel Radiator
Finish

White Powder Coated
Length

1400mm, 1800mm, 2000mm, 400mm, 800mm
Height

300mm
Sub-Type

Type 11 Single Panel Convector Radiator
Unit Quantity

1
Unit Type

Unit
Width

400mm, 800mm, 1400mm, 1800mm, 2000mm
Mounting

Wall Mounted
EXTRA

411304, 411308, 411314, 411318, 411320
Includes

Air Vent, Blanking Plug, Fixings
Excludes

Valves
Heat Output BTU

1406 BTU, 2460 BTU, 3163 BTU, 3514 BTU, 703 BTU
Heat Output Watts

1030 W, 206 W, 412 W, 721 W, 927 W
Panel

Type 11 Single Panel
Heat Source

Central Heating
Guarantee

10 Years
