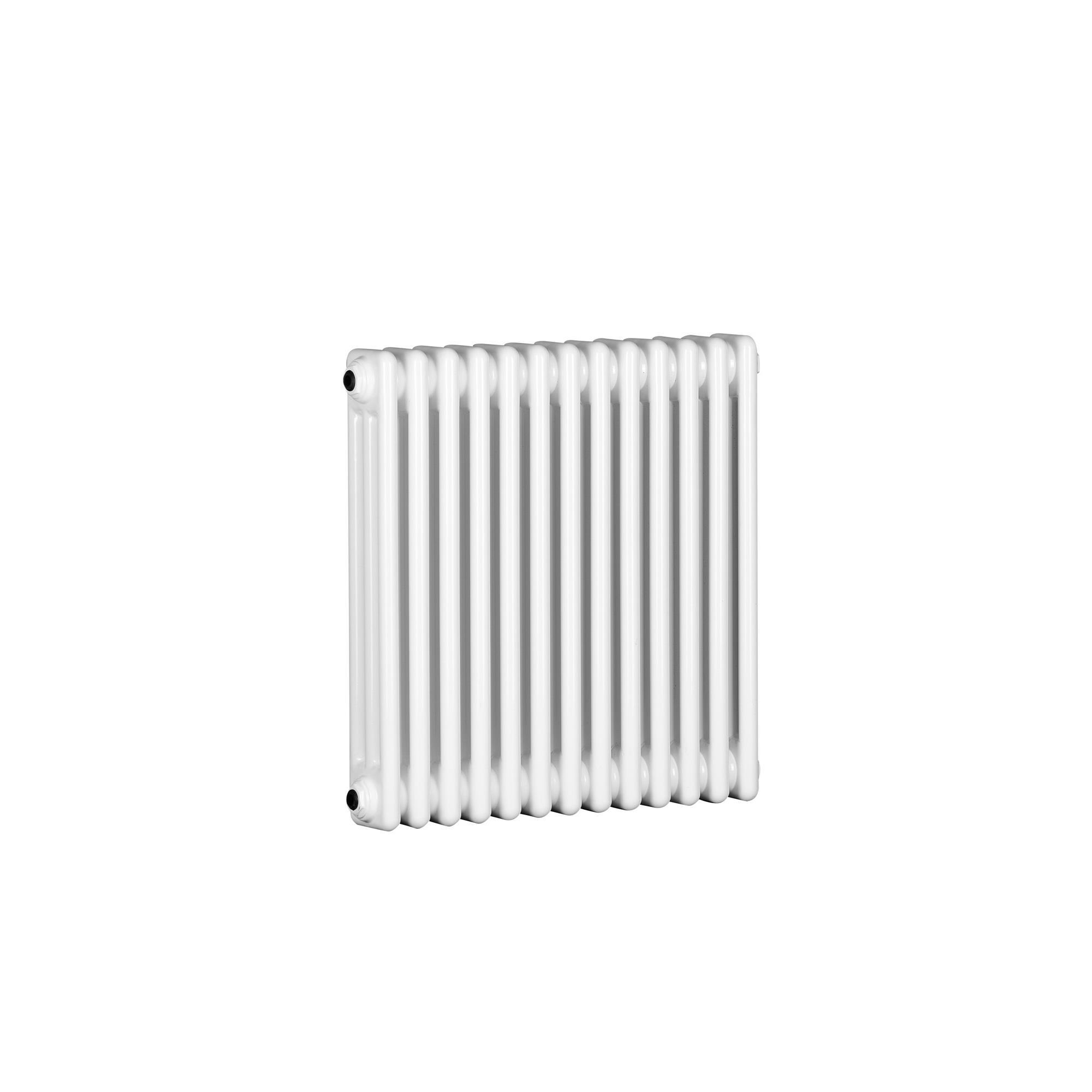

Traditional White 3 Column Radiators 600mm high

£98.40

SKU: TCR_3C_600h Categories: , , ,

Description

white triple column radiators white triple column radiators

These are brand new classic style column radiators made from mild steel, but designed to look like traditional cast iron radiators.  Made to the highest standards using 1.3mm thick steel, they’re painted using a two coat powder process to ensure a long lasting, durable finish and come with an industry-leading 5 year guarantee.

Available in a range of widths and heights, and with 2, 3 or 4 columns they can be connected to both combination and tank-fed domestic and commercial central heating systems.

Colour Options

We can provide a quote for alternative paint colours using the RAL system – send us a message if you’d like more information.

Technical Information

  • Material: 1.3mm Mild Steel
  • Finish: White RAL 9016 Powder Coating
  • Tested to 16 Bar
  • Number of Columns: 3
  • Certifications: EN442
  • ½” water connection
  • Guarantee: 5 Years
  • Wall brackets and fixings are included
  • Valves are not included
  • Radiator Feet are available separately



Heat Outputs

No. of Columns Length Height Depth Heat Output BTU Heat Output Watts
2 Columns 200mm 1500mm 70mm 1357 BTU 432 watts
2 Columns 288mm 1500mm 70mm 2036 BTU 648 watts
2 Columns 400mm 1500mm 70mm 2715 BTU 864 watts
2 Columns 500mm 1500mm 70mm 3393 BTU 1080 watts
2 Columns 599mm 600mm 70mm 1765 BTU 562 watts
2 Columns 821mm 600mm 70mm 2307 BTU 734 watts
2 Columns 999mm 600mm 70mm 2986 BTU 950 watts
2 Columns 1177mm 600mm 70mm 3529 BTU 1123 watts
2 Columns 1399mm 600mm 70mm 4072 BTU 1296 watts

3 Columns 599mm 480mm 100mm BTU watts
3 Columns 821mm 480mm 100mm 2065 BTU 657 watts
3 Columns 999mm 480mm 100mm 2672 BTU 850 watts
3 Columns 1177mm 480mm 100mm 3156 BTU 1004 watts
3 Columns 1399mm 480mm 100mm 3767 BTU 1199 watts
3 Columns 599mm 600mm 100mm 2647 BTU 842 watts
3 Columns 821mm 600mm 100mm 3574 BTU 1138 watts
3 Columns 999mm 600mm 100mm 4457 BTU 1418 watts
3 Columns 1177mm 600mm 100mm 5339 BTU 1699 watts
3 Columns 1399mm 600mm 100mm 6221 BTU 1980 watts

Additional information

ccp_Type

Traditional Column Radiators
Main Colour

White
Brand

manissa
Material

steel
MPN

Does Not Apply
Country/Region of Manufacture

China
Radiator Type

3 Column Radiator
Finish

White Powder Coated
Length

1177mm, 1399mm, 380mm, 599mm, 821mm, 999mm
Height

600mm
Sub-Type

Central Heating Radiator
Unit Quantity

1
Unit Type

Unit
Width

380mm, 599mm, 821mm, 999mm, 1177mm, 1370mm
Mounting

Wall Mounted
Style

Traditional
Woo Category 1

Central Heating Radiators
Woo Category 2

Traditional Column Radiators
Woocategory3

3 Column Radiators
EXTRA

Y36001000, Y36001200, Y36001400, Y3600400, Y3600600, Y3600800
Includes

Fixings
Excludes

Valves, Feet
Heat Output BTU

2324 BTU, 3676 BTU, 4964 BTU, 6190 BTU, 7415 BTU, 8641 BTU
Heat Output Watts

1170 W, 1580 W, 1970 W, 2360 W, 2750 W, 742 W
Panel

3 Columns
Heat Source

Central Heating
